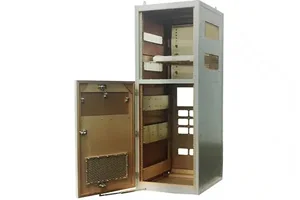

Rugged Electronic Cabinets, Racks & Enclosures

Electronic enclosures are racks or cabinets designed to hold electronic equipment, such as data servers, control panels, and communication systems. They protect the equipment’s components from damage and prevent electrical shock caused by direct contact with them. Ours are made from extruded aluminum alloys and rated for different protection levels in a variety of applications and environments. When used in conjunction with system accessories and kits, every enclosure transforms into a specialist for particular tasks.

We offer a comprehensive selection of COTS / Modified COTS rugged enclosures that often exceed the most rigid standards in EMI/RFI and shock and vibration.



Modular Enclosures Save You Time, Stress and Money

Traditional unibody enclosures are still used in some applications, but modular enclosures can offer the same security and protection, while providing more flexibility for assemblers and installers. Our unique family of proprietary aluminum extrusions makes our products modular, versatile, and rugged. The “bolted-together” design allows for easy assembly, multiple possible configurations, interchangeability of parts for easy maintenance and maximized uptime, and even the safety of users and associated equipment. Our basic accessory kits are shock- and vibration-qualified and interchangeable between different enclosure configurations.

A & J Manufacturing Co. Cabinet, Rack and Enclosure Design Features

  • Full customization that can interface with any electronic payload, chassis or module. Any size (height, width, depth) can be specified
  • EMI / RFI: MIL-STD-461
  • Modular and hatchable
  • Lightweight – aluminum / bolted-together; no weld joints
  • Shock and vibration qualified
    • MIL-S-901E (shock)
    • MIL-STD-167-1A (vibration)
    • MIL-STD-810G (temperature, humidity, shock, vibration)
  • Easily disassembled and re-assembled with no tooling required
  • On-site engineering services for custom applications
  • Full complement of equipment mounting kits, plus cooling systems, filters, PDUs, slides and other accessories
  • Our enclosures can be freestanding, floor-mounted or wall-mounted

    Technical Design of our Cabinets, Racks and Enclosures

    Our enclosures feature 19-inch wide front and rear panels with front RETMA rails that have standard EIA panel mounting hole patterns and vertical T-Nut slots and two backup rails that have T-Nut slots located in the rear. A rear EIA hole pattern is optional.

    • The use of the T-Nut slot allows for infinite vertical adjustments without the need for drilled mounting holes. The T-Nut slot dimensions from the front to rear and side to side are maintained throughout the standard series of configurations to facilitate the interchangeability of installation assemblies.
    • The RETMA Rail EIA holes have stainless steel threaded inserts that may be removed and replaced when the insert becomes stripped or worn.
    • RETMA rails and backup rails enable the enclosure to be configured at any time to meet EMI/RFI requirements.
    • An X brace is included as a standard feature in all delivered racks/enclosures. It provides torsional stiffness and keeps the vertical frame members from bowing.
    • Our COTS standard racks are recognized as a military standard. Many products have been assigned National Stock Numbers.
    • If multiple racks are required, joining kits are available for multi-bay configuration on all sides.
    • Decades of historical test data convince customers to extend shock and vibration qualifications to new or modified designs by similarity without the added cost of additional testing.



    Types of Electronic Cabinets, Racks and Enclosures

    We offer three standard varieties of electrical enclosures:

    AJXR 100 Series

    AJM 150 Series

    AJMR & AJSR 159 Series

    Standard Sizes

    Height: 72”

    Width: 22.31”

    Three (3) standard depths: 26", 30", 36"

    Height: 72”

    Width: 22.31”

    Three (3) standard depths: 26", 30", 36"

    Height: 72”

    Width: 24”

    Three (3) standard depths: 26", 30", 36"

    Payload

    Up to 500 lbs.

    Up to 1200 lbs.

    Up to 1600 lbs.

    Material

    2500 Series aluminum extrusions

    6500 Series aluminum extrusions

    9000 Series aluminum extrusions

    Shock Protection

    Light Duty

    Medium/Heavy Duty

    Extreme Heavy Duty

    Shock & Vibration Protection

    Provides a lightweight, space saving rack for protection

    from rain, dust and surface impact

    Delivers a rack with good vibration protection using shock mounts

    Delivers maximum level of shock and

    vibration protection, including MIL-specs: MIL-STD-901D, MIL-STD-810 and MIL-STD-167

    Uses

    Semi-Fragile Medical Equipment, Radios and Amplifiers,

    Field Deployed Test Equipment

    Industrial Applications, Military Rapid Deployment, Field-Deploy Applications,

    Control Consoles/Panels, Broadcast & Television Communications Equipment

    Military Rapid Deployment, Memory Storage Devices,

    Precision Lab Equipment, Calibrated Diagnostic / Testing Gear,

    Aerospace Instrumentation

    Configuration

    Fully configurable

    (COTS & customizable)

    Modified and custom configurations are available for all enclosures. All enclosures are shipped with extra hardware (painted 26251).



    Bolted-Together Construction

    The bolted-together design enables the rack to be disassembled for passage through narrow openings and passageways and around tight corners. The enclosure may be reassembled and still maintain its original structural integrity.

    There’s a common misperception that modular enclosures require a lot of assembly work. While assembly work is of course required, it can be done by someone without specialized training, unlike the more difficult fabrication techniques (cutting/welding/bending). When reassembling, the following types of tools and torque values should be observed together with an application of component adhesive to the joining bolts.

    Screw Size

    APEX Tool Number

    Torque Value (Inch-Pound)

    Adhesive Type
    (or Equivalent)

    5/16-18

    #4

    108

    1/4-20

    #3

    52

    Loctite 242

    10-32

    #2

    20




    Contact A&J for your
    Electronic Cabinet, Rack and Enclosure Needs Today!

    If you need cabinets, racks or enclosures for your equipment, turn to the experts at A&J. We offer a range of standard light-duty, medium-duty, and heavy-duty enclosures as well as a variety of modification and customization capabilities to suit different customer requirements and restrictions.
